Sol 3 PCB

Type: Sol 3 - Hotswap


Sol 3 has the following features:

  • Screwless, magnetic Steel & Polycarbonate case
  • Gasket mount on both plate and PCB
  • Case Style: R-Mount system
  • Switchplate materials: Steel, FR4, POM, Brass, Carbon Fiber
  • Caseplates: Brushed stainless, Electrophoresis Black or White, Carbon Fiber
  • Optional HHKB-style blocker top plate

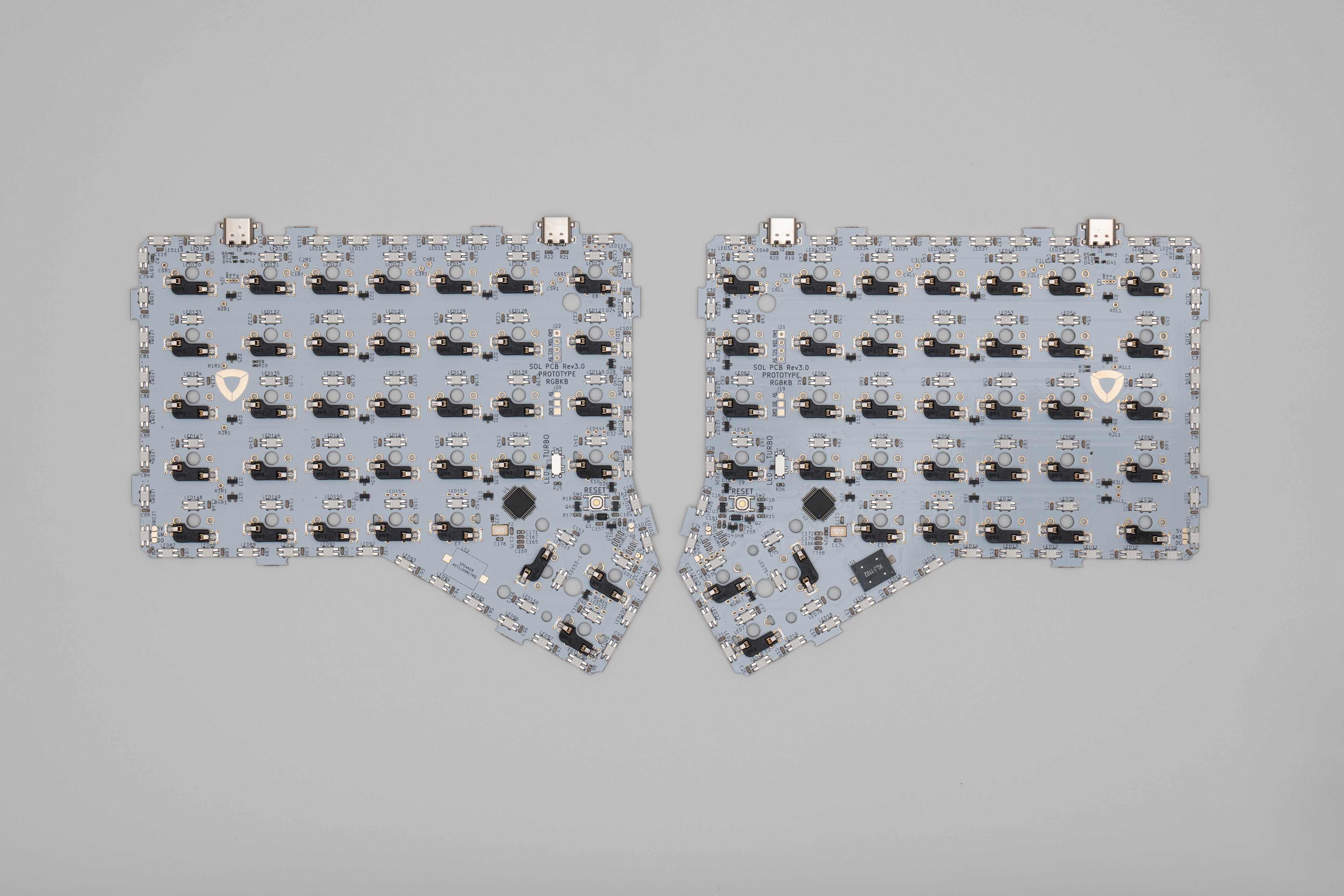

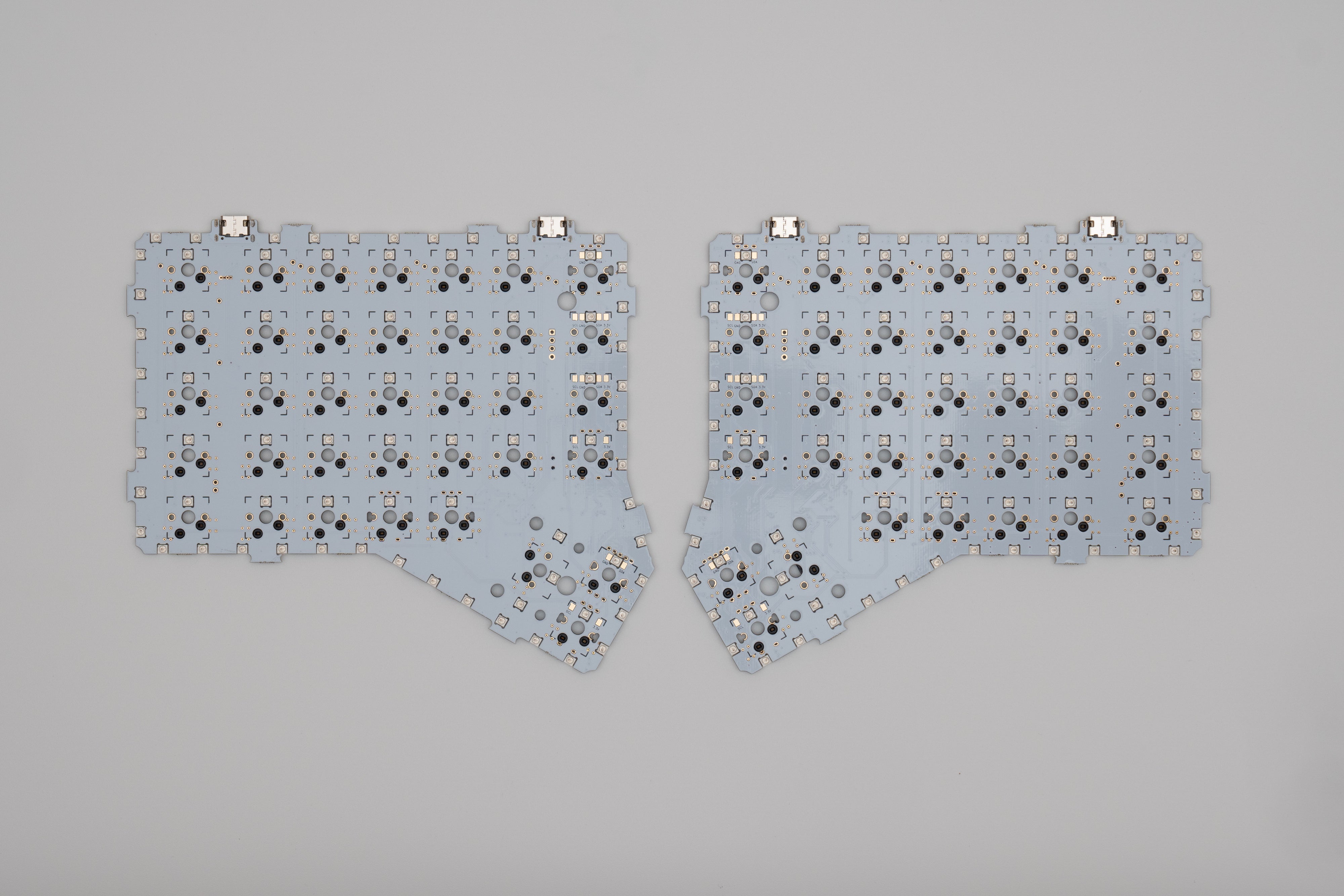

The PCB features:
  • 2x STM32 microcontroller
  • MX hotswap sockets with VIA reinforcement and hard-solder backups
  • Row+column, RGB, and i2c pinouts
  • 4x USB-C ports
  • ESD protection via TVS diodes on D+ and D-
  • 158 RGB LEDs
  • Piezo speaker on the left half, footprint for stereo upgrade
Optional upgrades:
  • Magnetic tenting feet
    • RGB Underglow
  • Oled and touchbar modules
  • MKUltra plate foam
  • Up to 3 rotary encoders per half.

This product includes the following

  • Pair of PCBs, White
  • Gasket-mount parts
  • Case bumpon feet
  • Switch puller
