Description
PREORDER: To ship March/April 2022
Sol 3 has the following features:
- Screwless, magnetic Steel & Polycarbonate case
- Gasket mount on both plate and PCB
- Case Style: R-Mount system
- Switchplate materials: Steel, FR4, POM, Brass, Carbon Fiber
- Caseplates: Brushed stainless, Electrophoresis Black or White, Carbon Fiber
- Optional HHKB-style blocker top plate

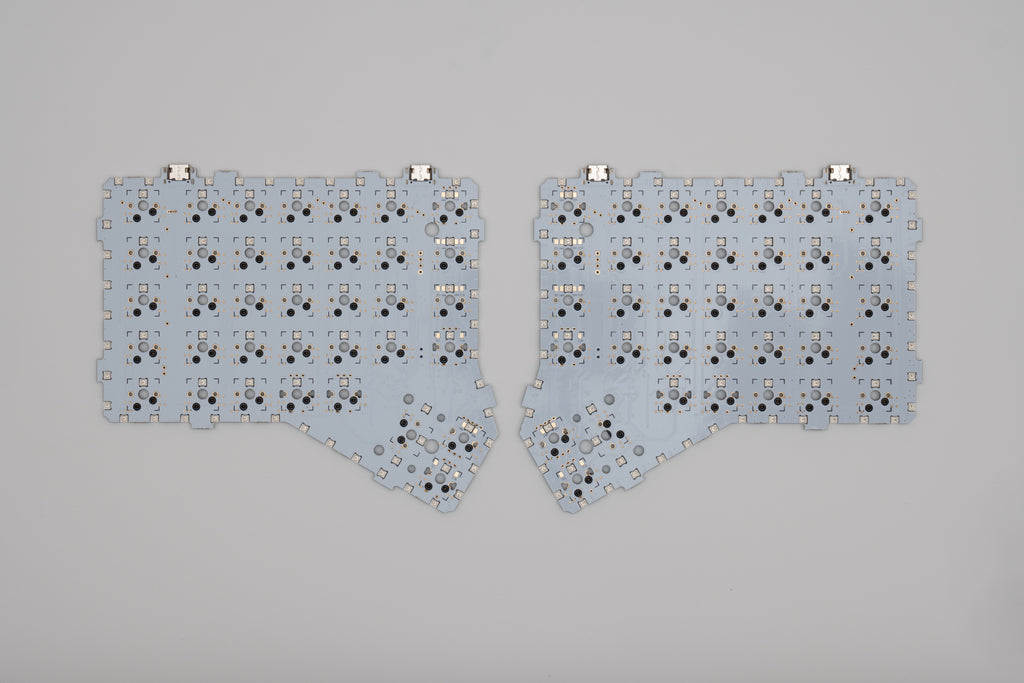

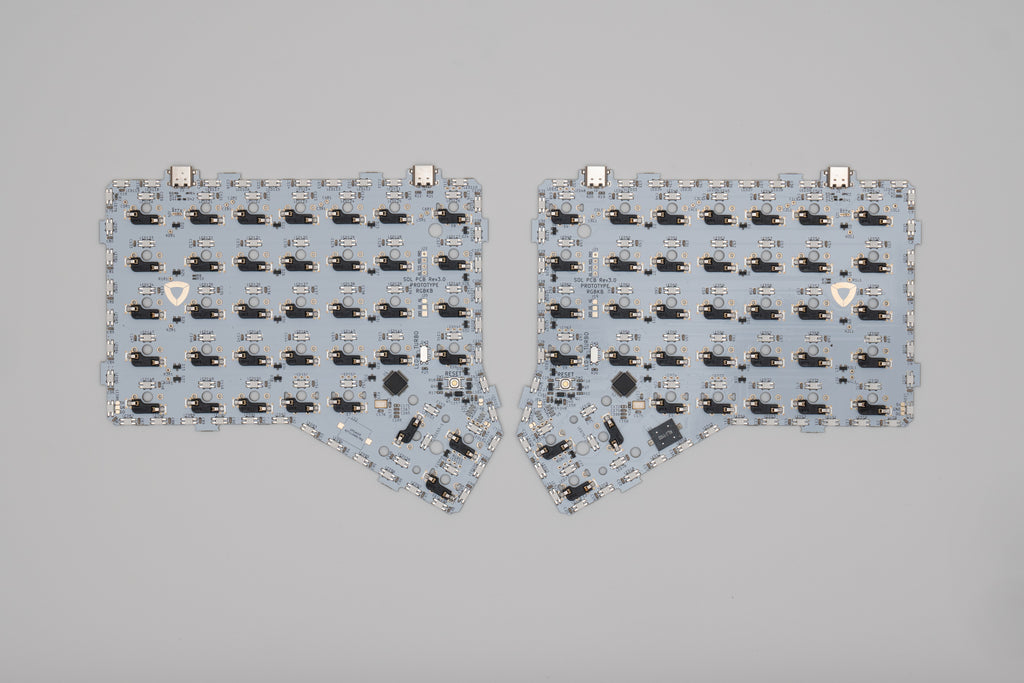

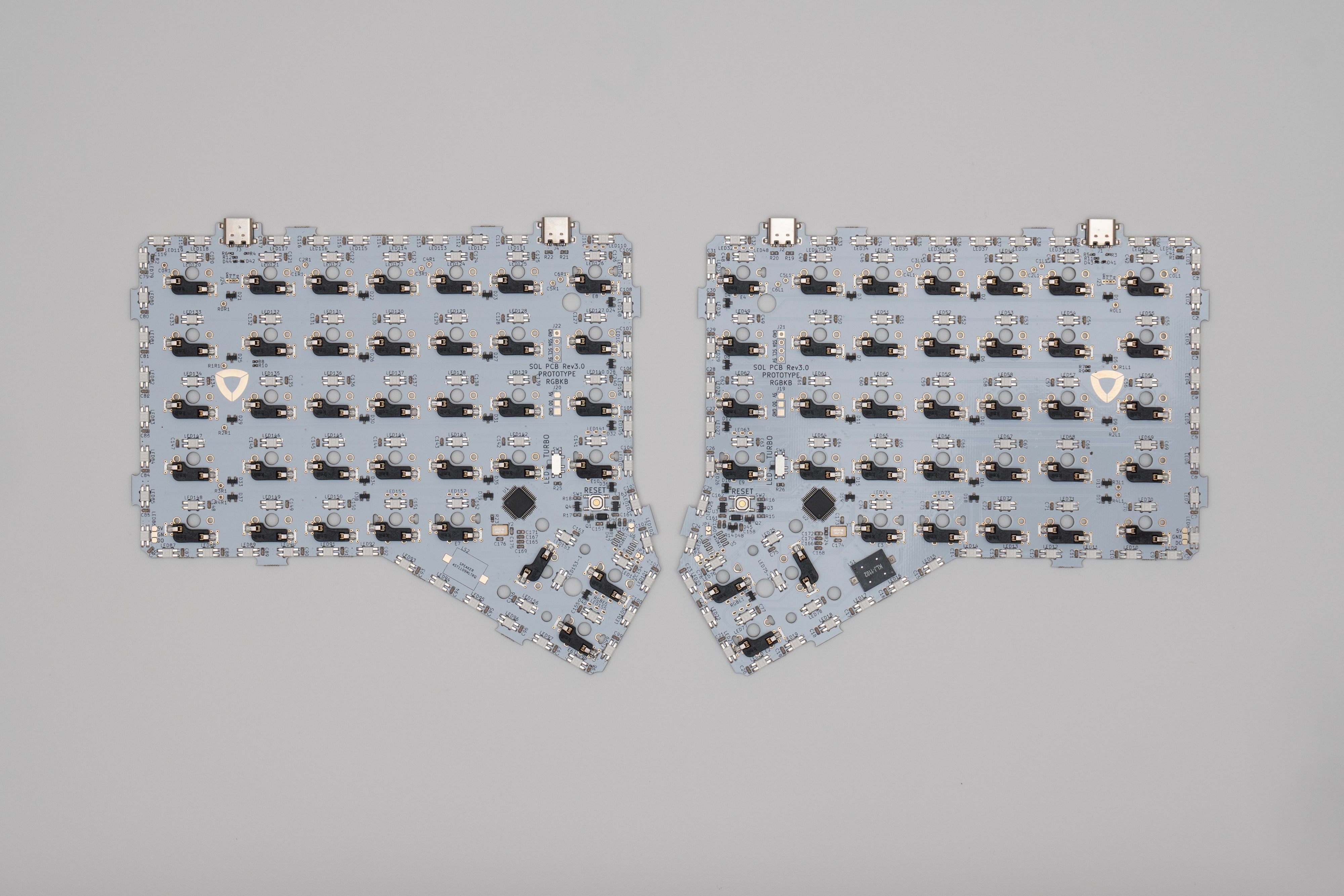

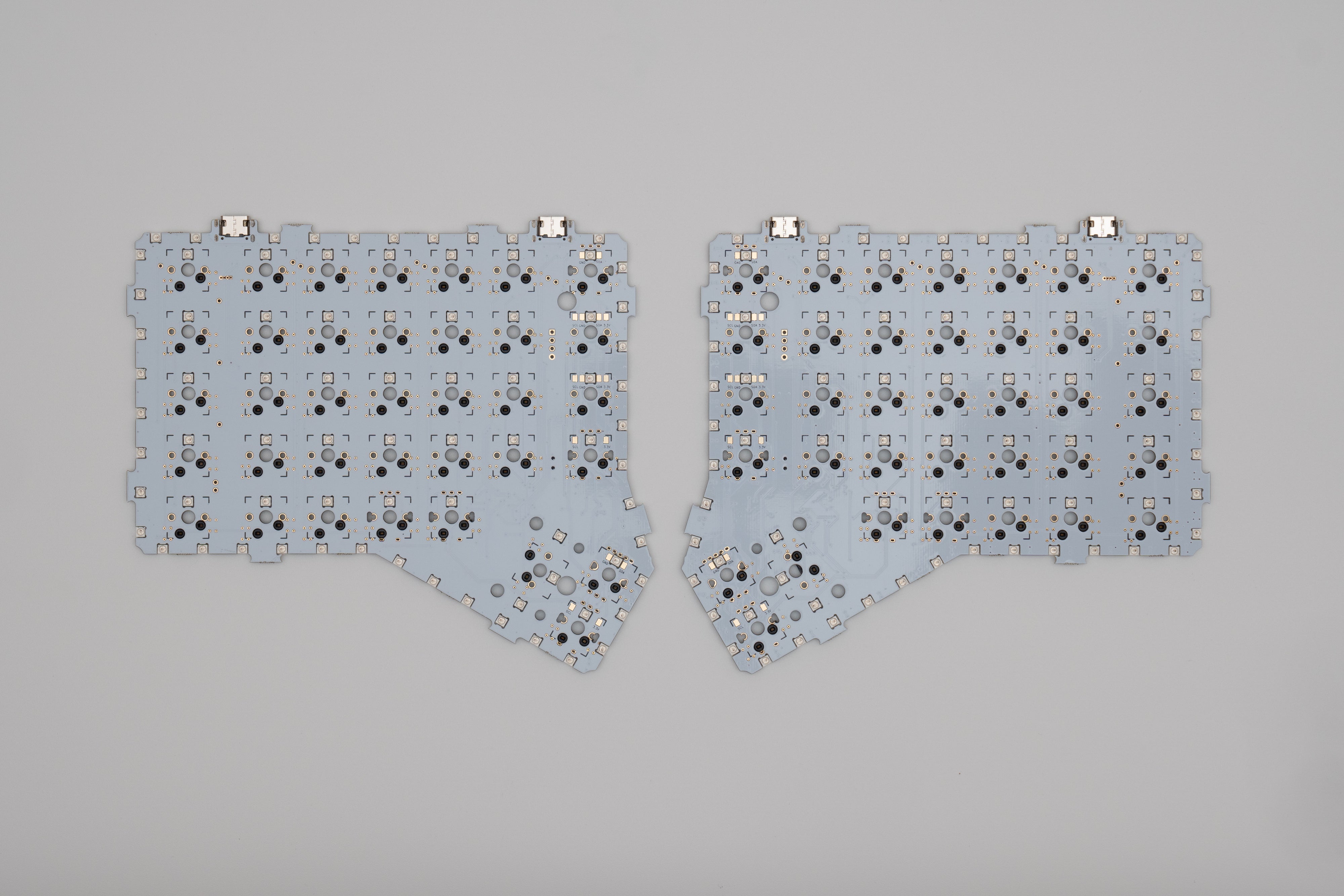

The PCB features:
- 2x STM32 microcontroller
- MX hotswap sockets with VIA reinforcement and hard-solder backups
- Row+column, RGB, and i2c pinouts
- 4x USB-C ports
- ESD protection via TVS diodes on D+ and D-
- 158 RGB LEDs
- Piezo speaker on the left half, footprint for stereo upgrade
Optional upgrades:
- Magnetic tenting feet
- RGB Underglow
- Oled and touchbar modules
- MKUltra plate foam
- Up to 3 rotary encoders per half.
This product includes the following
- Pair of PCBs, White
- Gasket-mount parts
- Case bumpon feet
- Switch puller
